ZINDNALU. ZD83-04
+
  • ZINDNALU. ZD83-04

ZINDNALU. ZD83-04


Category:

One component galvanizing coating that contains 90% zinc dust & 4% aluminum powder in the dry film and provides duplex protection of cathode and barrier, with the same anti-corrosion performance as hot-dip galvanizing.

Not sure which Zindn product is best for your project?
Our experts are here to guide you. Get a custom quote and expert advice today!

  • Description
  • ZD83-04 is a one component galvanizing coating that contains 90% zinc dust & 4% aluminum powder in the dry film and provides duplex protection of cathode and barrier, with the same anti-corrosion performance as hot-dip galvanizing. It can be applied by brush, roller or spray gun on a clean and rough substrate in a wide range of atmospheric circumstances and a recharging system for hot dip galvanized substrate.

    It can be used by a single layer or as a primer in a two-coat or three-coat systems depending on different corrosivity & requirements.

    ZINDNALU Spray is also available.



    Advantage of ZINDNALU. ZD83-04

    · ZD83-02 can achieve a zinc protective layer with a zinc content 90% at room temperature, with excellent anti-rust performance

    · Excellent weather resistance

    · Strong adhesion and good recoating performance

    · Convenient application, safe and environmentally friendly

    · Alternative anticorrosive performance to hot dip

    · It can be used in C3, C4, C5, CX corrosivity



    Physical Constants

    Item no

    ZD83-04

    Zinc content

    90% (±1%)

    Aluminum powder

    4% (±1%)

    Type

    One pack

    Color

    Silver gray

    Gloss

    Matt

    Volume solids

    45%

    Solid by weight

    76%

    Density

    2.3%

    Recommended DFT

    60μm-120μm

    Theoretical coverage

    0.409kg/㎡ (80μm DFT)

    Touch-dry (press dry)

    30 mins (@25°C)

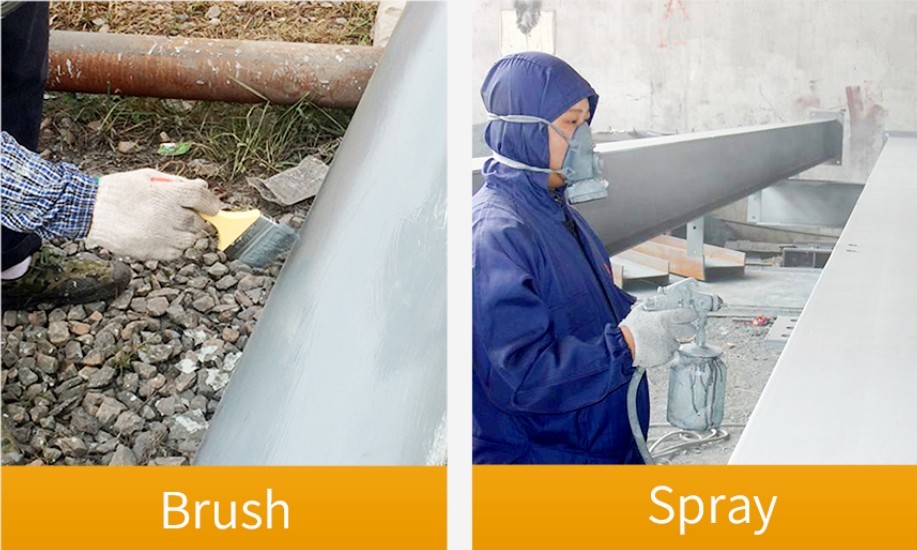

    Application methods

    Spray, Brush, Rolling

    Application conditions

    Ambient temperature 5°C-50°C, humidity < 95%

    Shelf life

    12months from manufacture date (unopened)

    Pot life

    If closed correctly after use, it can still be used

    Pack

    5kgs, 10kgs, 25kgs

    Dilute mixing ratio

    5%-20%

    Storage

    In a cool and ventilated place

    MOQ

    500kgs

    Country of Origin

    Jiangsu province, China



    ZD83-04 Protective Systems

    Single layer system (40μm-120μm)

    Excellent protective performance

    Cost-effective

    Duplex system

    ZINDN96 (40μm-100μm) +ZINDNALU. (20μm-30μm)



    Applications
